Eckerle EE400M condensate pump tank

Manufacturer Brand Image
SKU: ZZ EE400M
Contact us for pricing
Availability: Out of Stock

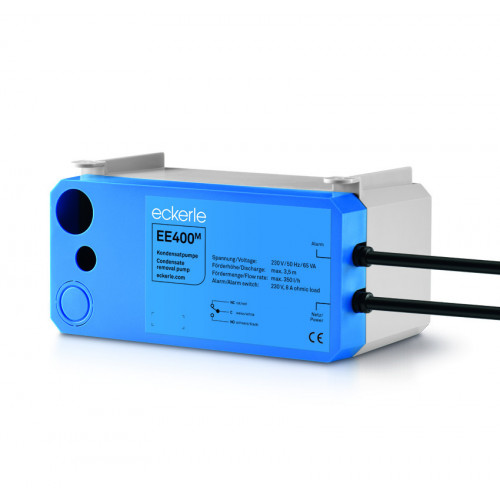

Eckerle EE400M condensate pump tank

The Eckerle EE400M condensate pump is designed for the transport of condensate from air conditioning systems, refrigeration counters, dehumidifiers and gas condensing boilers.

The housing is made from impact-stable ABS and is chemically resistant to the acidic condensate from condensing boiler systems.

  • Extremely quiet operation and vibration-free
  • Pump encapsulated and fluid-cooled
  • Protection class IP 55
  • Max. medium temperature
  • Compact, space-saving construction
  • Pump housing made from high-quality plastic, incl. wall bracket
  • Overflow protection via separate float control with cable connection
  • Integrated non-return valve
  • Can also be used in external trough (trough height min. 62 mm, max. 70 mm)
For air conditioning units up to (kW) 50
Pump module (L x W x H in mm) 185 × 85 × 100
Electrical data 230 V, 50/60 Hz, 65 VA
Max. delivery volume (l/h) 350
Max. delivery height (m) 4
Tank capacity (l) 0,5
Alarm circuit max. 230 V, 8 A (ohmic load) NO/NC normally open/normally closed
Switching points (mm) Alarm: max. 55 Start: 52 ±1 Stopp: 24 ±1
Pressure hose diameter (mm) 8 × 2
Voltage
  • 230V 50/60 Hz 65 VA
Manufacturer
  • Eckerle
Type
  • Condensate Pump Tank
