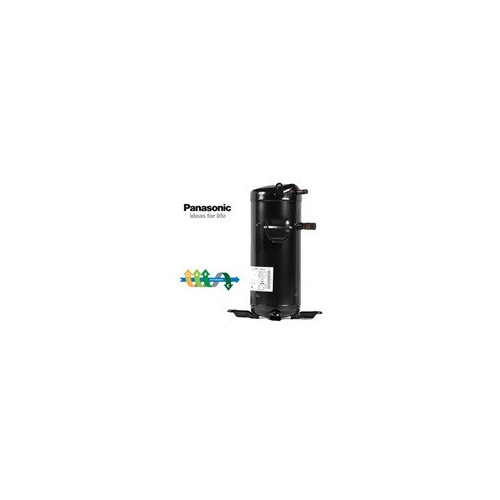

Compressor Sanyo / Panasonic C-SBN303H8G NEW

Compressor Sanyo / Panasonic C-SBN303H8G NEW

* Please note that the delivery lead time will be approx. 5-7 working days from receipt of order

• Voltage 380-415V / 3 / 50Hz

• Horsepower 4 CV

• Displacement  66.8 cm3

• Power under ARI conditions with R407C refrigerant 11.6 kW

• Power under Refrigeration conditions with R404A refrigerant 8.73 kW

• Power in Ashrae conditions with R134a refrigerant 7.95 kW

• Power under ARI conditions with R134a refrigerant 8 kW

• Refrigerant R407C, R404A, R134a, R407F

• Suction pipe connection 7/8 "

• Discharge pipe connection 1/2 "

• Weight 37.50 Kg

• Intensity of service 7.90 A

• Starting current (locked rotor) 48 A

• Maximum service intensity 11:10 A

• Type of oil FV68S

• Oil refill 1600 cc

• Text 380 / 415-3-50 (460 / 440-3-60)

• Sound level 62 dB

• Temperature High average

• Room temperature 35 ºC

• Technologies Fixed speed

• Heat pump Not

• Maximum casing temperature 90 ºC

• Maximum discharge temperature 115 ºC

• Maximum winding temperature 115 ºC

• Engine cooling type natural

• Type of motor 3-PH Induction Motor

• Motor protection type Internal

• Speed 2900 rpm

• Low pressure design 1.60 M Pa

• High pressure design 3.3 M Pa
