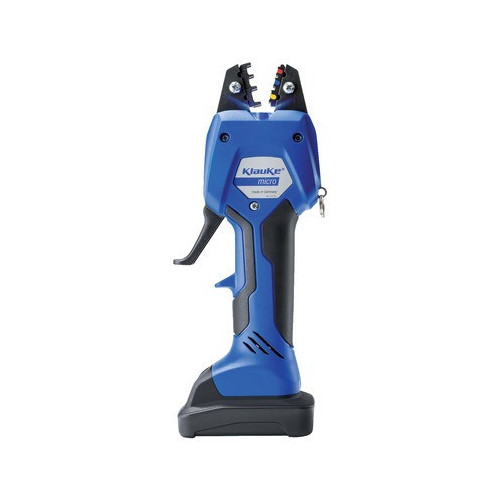

Klauke EK 50 ML Electromechanical crimping tool 0.14 - 50 mm²
- The Klauke micro with intuitive PowerSense function combines the benefits of manual crimping tools with the convenience of battery powered hydraulic crimping tools
- Excellent crimping results with minimum effort
Features
- Simple and safe: One-button operating concept for controlling all tool functions
- Electronic control with locking function monitors full closing of the dies
- Simple and safe: Automatic retraction after operation completed
- Manual retraction as required
- Motor stall protection
- Ergonomic 2C housing in the Klauke "In-line Design"
- Fastening eye for use with balancer or as fall protection in field applications
- Very low weight and high speed for maximum efficiency
- Powerful drive technology for fatigue proof operations
- Powerful 10.8 V Li-Ion battery with charge status display
- LED for work area illumination
- Maintenance display via LED
Suitable for
- 50-series interchangeable crimping dies
Specifications
| Crimping force | max. 15 kN |
| Crimping range | 0.14 - 50 mm² |
| Crimping cycle | < 1.5 s (based on connection material) |
| Number of crimps | approx. 300 for 10 mm² Cu DIN 46234 / per battery charge |
| Battery voltage | 10.8 V |
| Battery capacity | 1.5 Ah, Li-Ion |
| Battery charging time | approx. 40 min. |
| Weight incl. battery | 0.96kg |
| Ambient temperature | -10 °C to + 40 °C |
Compatibility
TUBULAR CABLE LUGS AND CONNECTORS – CU
| SUITABLE FOR | CONNECTING MATERIAL | CRIMPING RANGE MM² | CRIMPING PROFILE | |
|---|---|---|---|---|
| Tubular cable lugs and connectors - Cu, standard design |
| 0,75 - 10 |
| |
| Tubular cable lugs and connectors - Cu, standard design |
| 6 - 25 |
| |
| Tubular cable lugs and compression joints for solid conductors - Cu |
| 1,5 - 10 |
|
Manufacturer
- Klauke
Model
- EK50ML
Type
- Crimping Tool
