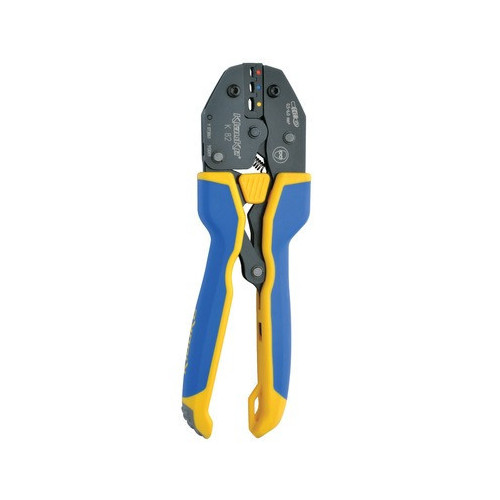

Klauke K82 T Crimping tool for insulated cable connections 0.5 - 6 mm²
- With an additional locator to guarantee a precise crimp connection
- 33 % less effort
- 3-Component handle grip
- With an additional locator to guarantee a precise crimp connection
- Optimised material quality for a long service life
- Precise pre-tension setting maintains constant crimp performance
- Likewise suitable for processing of insulated connectors with vibration protection (PIDG connector)
Features
- Less effort required due to new mechanical lever system
- 3K handle: YELLOW: hard core for force transmission, BLUE: soft ergonomic grip area, GREY: soft non-slip protection
- Easy handling thanks to reduced tool opening width, optimum ergonomics due to the position of the palms and fingers, which is gentle on the joints
- Crimping of conductor and insulation in one step
- Extremely high vibration protection due to special crimping of the cable insulation (diamond crimp)
Specifications
| Crimping range red insulation sleeve | 0.5 - 1.0 mm² |
| Crimping range blue insulation sleeve | 1.5 - 2.5 mm² |
| Crimping range yellow insulation sleeve | 4.0 - 6.0 mm² |
| Length | 225 mm |
| Weight | 0.53kg |
Manufacturer
- Klauke
Model
- K82T
Type
- Crimping Tool
